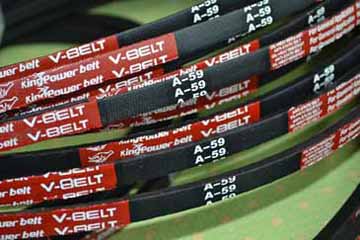

Raw Edge V belt/Wrapped V belt.
| TYPE |
SUPPLY CHARACTERISTIC |
Y Z A B C D SPZ SPA SPB SPC 3V(9N) 5V(15N) 8V(25N)
Banded V-Belts：3V 5V 8V |
1. Mold limitation ,is not suitable for many kinds of little batch production.
2. The service life of the product is generally up to 3-50000 kilometers.
3. Single specification minimum order quantity, at least for one sleeve of the number of nature. |
 |
(mm)
|
Type
|
Top Width
|
Pitch Width
|
Height
|
Angle
|
|
Common V belt
|
Y
|
6
|
5.3
|
4
|
40
|
|
z
|
10
|
8.5
|
6
|
40
|
|
A
|
13
|
11
|
8
|
40
|
|
B
|
17
|
14
|
11
|
40
|
|
C
|
22
|
19
|
14
|
40
|
|
D
|
32
|
27
|
19
|
40
|
|
E
|
38
|
32
|
23
|
40
|
|
Narrow V belt
|
SPZ
|
10
|
8
|
8
|
40
|
|
SPA
|
13
|
11
|
10
|
40
|
|
SPB
|
17
|
14
|
14
|
40
|
|
SPC
|
22
|
19
|
18
|
40
|
|
3V(9N)
|
9.5
|
8.5
|
8
|
40
|
|
5V(15N)
|
16
|
14.3
|
13.5
|
40
|
|
8V(25N)
|
25.4
|
23.7
|
23
|
40
|
|
Note: We can supply belts as clients sample or designated specification.Belt uses the Japanese imported high quality synthetic neoprene, and matches in a variety of different USES of rubber materials; Skeleton material for high quality polyester hard cord; Take back attached to different kinds of cloth to do protection.
And Raw-edged V belt compared with wrapped V belt, the bottom profile can reduce quantity of heat accumulation or stress concentration, prolong the belt life, running at high speed in only a small change.
Joint v belt has good integrity, with various stress uniform smooth operation load transmission high use to jitter and turn with suitable for pulsating load and impact vibration
