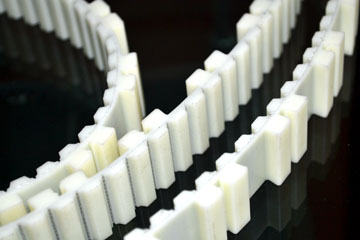

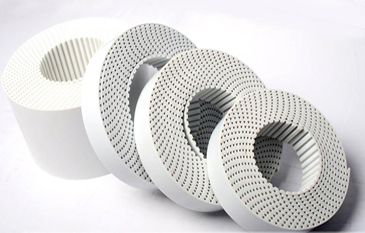

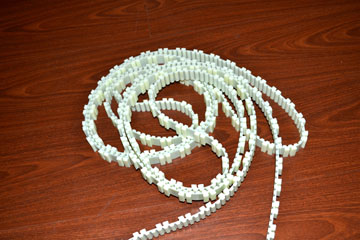

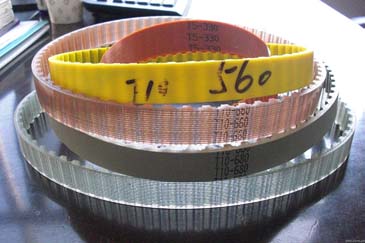

Depends on our experienced R&D team ,we can make all size of special industrial pu belt exactly as per customers’ drawing or samples.
|
Type |
Pitch Pb(mm) |
Tooth height ht(mm) |
Belt thickness hs(mm) |
|
XL |
5.080 |
1.27 |
2.30 |
|
L |
9.525 |
1.91 |
3.60 |
|
H |
12.70 |
2.29 |
4.30 |
|
3M |
3 |
1.17 |
2.4 |
|
5M |
5 |
2.06 |
3.8 |
|
8M |
8 |
3.36 |
6.00 |
|
T5 |
5 |
1.20 |
2.20 |
|
T10 |
10 |
2.50 |
4.50 |
|
AT5 |
5 |
1.20 |
2.70 |
|
AT10 |
10 |
2.50 |
5.00 |
